K-Apture: Video Recording and Pose Detection for Assessments

Overview of the Feature

What it is

The K-Apture feature allows users to record videos during any assessment. Videos are recorded directly through the app and synchronized with the sensor data. This enables the user to analyze each moment of the test both visually and quantitatively.

This feature is available only with the Excellence License.

Why use it

Videos paired with sensor data help identify compensations and technique issues. Reviewing both simultaneously allows for more accurate diagnostics and better return-to-sport decisions.

How to use it

Depending on the assessment type, the video should be recorded from either the front or the side of the patient/athlete.

Typical configurations:

• 3D Deltas: Front view to compare the resultant force angle with limb angles and detect torque on ligaments.
• K-Deltas: Front view during jumping or squatting to check inward knee movement and left-right symmetry.
• K-Power: Side view during sprints to review body inclination.

Where to find it

K-Apture can be enabled in:

1. Configuration page of any assessment in the Test Bank
2. Configuration page in Smart Mode

Options available

1. Video recording only
2. Video recording with pose detection (automatic joint tracking)
3. Choice between front-facing or rear-facing camera
4. Adjustable video quality and frame rate
5. Videos are saved locally on the device in MP4 format

Note: Pose detection only works with the rear-facing camera.

Details and Steps

This feature can be used in two ways:

1. Video Recording Only

Steps to follow: Go to the Test Bank and click on any assessment Click on “Start Activity” Select a patient/athlete profile or use Guest mode, then click “Next” On the configuration page, activate the “Capture Video” toggle Choose the camera (rear by default; toggle “Use Front Camera” if needed) Select the video quality Press “Start” to begin the activity

During the assessment, the camera view is visible in real-time. After completion, the video appears in the report synchronized with the sensor data. Playback speed can be adjusted, and screenshots can be taken and added to the report with timestamps.

2. Video Recording with Pose Detection

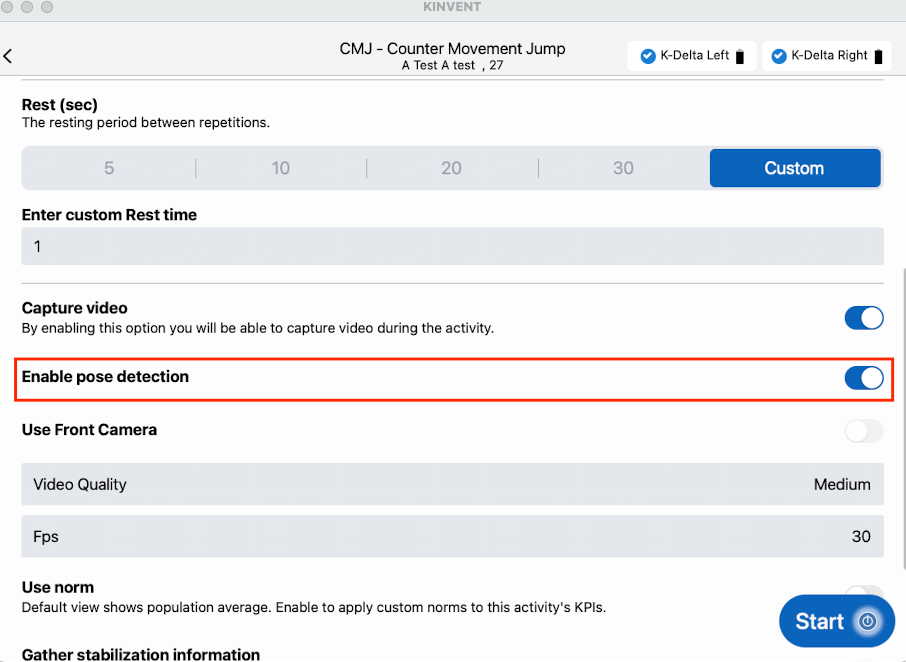

Steps to follow: Go to the Test Bank and click on any assessment Click on “Start Activity” Select a patient/athlete profile or use Guest mode, then click “Next” On the configuration page, activate both “Capture Video” and “Enable Pose Detection” Press “Start” to begin the activity

During the assessment, the camera view and pose skeleton are visible in real time. The skeleton can be turned off from the button in the upper left corner. Users can also tap on the knees in the video to view joint angles at any moment.

Where Are My K-Apture Videos Saved?

Videos captured with K-apture are only accessible on the phone or tablet where they were recorded. They are not available on the Kinvent app Cloud.

Follow the steps below to locate them on your device:

Android

Steps:

1. Open the My Files application.
2. Go to the Internal storage tab.
3. Find the folder named Kinvent.
4. Open the sub-folder called Reports.

Your videos are automatically saved in this folder.

iOS

Steps:

1. Open the Files application.
2. Go to On My iPhone or On My iPad.
3. Open Kinvent > Kinvent app.
4. Open the Reports folder.

Your videos are automatically saved in this folder.
